Combination machine ML410

PRODUCTS

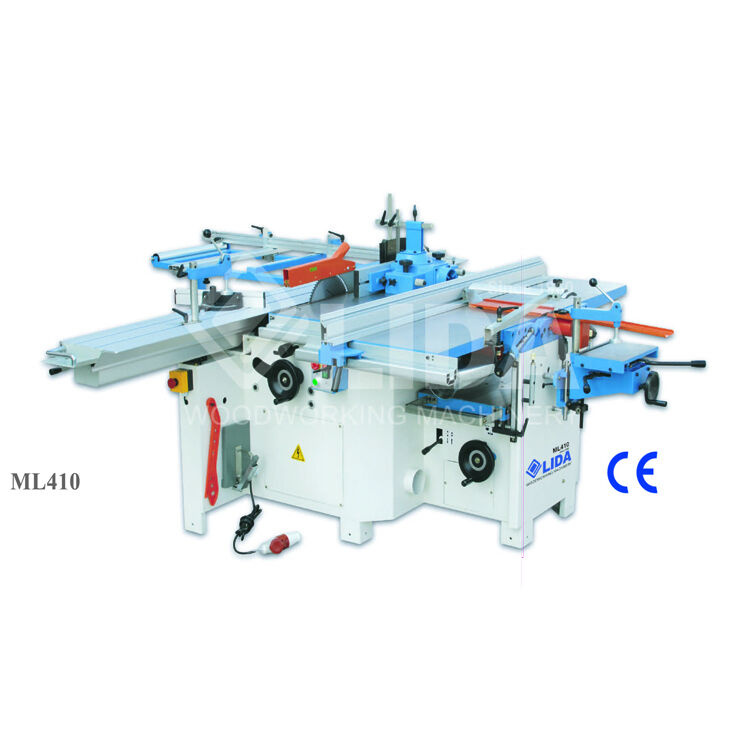

Combination machine ML410

【DESCRIBE】

ModelML410
Max. Planing Width400mm
Max. Cross-cut Width2800mm
Cut width between blade and rip fence880mm
Saw blade Φ<span "="" style="box-sizing: border-box; font-size: 9pt;">305mm
Tilting saw blade0 - 45°
Height of cut90mm
Height of cut with saw blade at 45°45mm
Ranges of Thicknessing6 ~ 240mm
Spindle speed1750/3500/6700rpm
Spindle Dia.30mm
Suction dust hoodPlaning/Thicknessing: 120mm
Sawing/Milling: 100mm
Spindle:useful length85mm
Max drilling dia.16mm
Motor PowerML410:Planer:3KW 400V 50Hz
Saw/Moulder:2.2KW 400V 50Hz
Net Weight/Gross Weight780/850kg
Packing Dimensions2150x1560x1050mm
2700x350x220mm

Note : The products updating constantly ,please forgive us do not issuing a seperate notice if there is any designing change.

Feature

1. A combination machine takes up much less space than the equivalent separate machines. This makes them popular with home hobbyist and workshops with limited space. Most combination machines set up time is increased when moving from one function to another and back again.

2. The universal combined machine for D.I.Y.woodworkers and carftmen workshops ,and with the best price.

3. Diameter and rotation speed for spindle can be done as user's requirements.

4.  Spindle can be equipped with nail milling cutter.

5. Length for aluminium sliding table can be optional.
